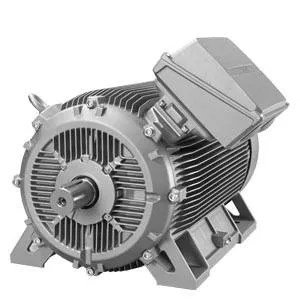

Innomotics SD 1LE5603 400.0kW 2P

SKU: 1LE5603-3BA4
Innomotics SD — Next Generation (1LE5)

Motor Next Gen IE3: 400.0 kW. 2986 rpm, Frame 355L, Eff. 95.8%. IP55.

Rated Power 50Hz
400.0 kW
Degree of Protection
IP55
Frame Size
355L

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 400.0 kW
Rated Power 60Hz 355.0 kW
Rated Speed 2986 rpm
Rated Torque 1280.0 Nm
Number of Poles 2
Rated Current 660.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 355L
Weight (IM B3) 2240.0 kg
Moment of Inertia 5.4 kgm2

Performance

Efficiency 4/4 Load 95.8 %
Efficiency 3/4 Load 95.7 %
Efficiency 2/4 Load 95.2 %
Power Factor 0.92

Detailed Description

SD Motors new generation Performance Line cast iron IE3. Article 1LE5603-3BA4. Rated power 400.0 kW at 50 Hz. Speed 2986 rpm. Frame size 355L. Efficiency 95.8% at rated load. Degree of protection IP55. Insulation class F.
