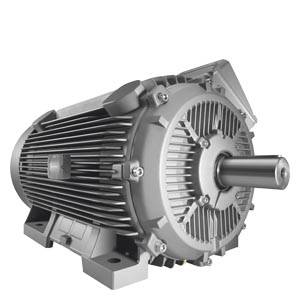

Innomotics SD Add 1LE5534 560.0kW 8P

SKU: 1LE5534-4BD5
Innomotics SD — Next Generation (1LE5)

Motor Next Gen IE4: 560.0 kW. 745 rpm, Eff. 96.3%. IP55.

Rated Power 50Hz
560.0 kW
Degree of Protection
IP55
Weight (IM B3)
4000.0 kg

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 560.0 kW
Rated Power 60Hz 5.0 kW
Rated Speed 745 rpm
Rated Torque 7200.0 Nm
Number of Poles 8
Rated Current 1060.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Weight (IM B3) 4000.0 kg
Moment of Inertia 38.0 kgm2

Performance

Efficiency 4/4 Load 96.3 %
Efficiency 3/4 Load 96.5 %
Efficiency 2/4 Load 96.1 %
Power Factor 0.79

Detailed Description

SD Motors Add new generation Basic Line cast iron IE4. Article 1LE5534-4BD5. Rated power 560.0 kW at 50 Hz. Speed 745 rpm. Efficiency 96.3% at rated load. Degree of protection IP55. Insulation class F.
