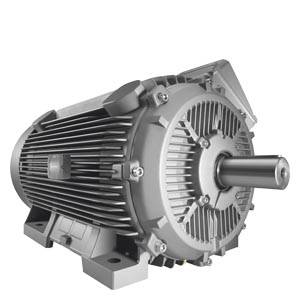

Innomotics SD Add 1LE5534 710.0kW 6P

SKU: 1LE5534-4BC5
Innomotics SD — Next Generation (1LE5)

Motor Next Gen IE4: 710.0 kW. 994 rpm, Eff. 96.7%. IP55.

Rated Power 50Hz
710.0 kW
Degree of Protection
IP55
Weight (IM B3)
4200.0 kg

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 710.0 kW
Rated Power 60Hz 3.0 kW
Rated Speed 994 rpm
Rated Torque 6800.0 Nm
Number of Poles 6
Rated Current 730.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Weight (IM B3) 4200.0 kg
Moment of Inertia 41.0 kgm2

Performance

Efficiency 4/4 Load 96.7 %
Efficiency 3/4 Load 96.8 %
Efficiency 2/4 Load 96.5 %
Power Factor 0.84

Detailed Description

SD Motors Add new generation Basic Line cast iron IE4. Article 1LE5534-4BC5. Rated power 710.0 kW at 50 Hz. Speed 994 rpm. Efficiency 96.7% at rated load. Degree of protection IP55. Insulation class F.
