Innomotics SD Add 1LE5534 450.0kW 8P — Innomotics Innomotics SD — Next Generation (1LE5)
Part of Siemens Group
CE Certified
ISO 9001 Quality
24h Quote Response

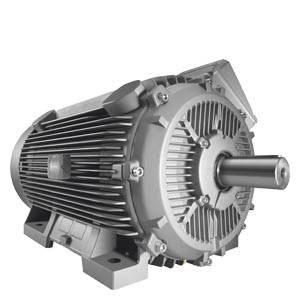

Innomotics SD Add 1LE5534 450.0kW 8P

SKU: 1LE5534-4AD7
Innomotics SD — Next Generation (1LE5)

Motor Next Gen IE4: 450.0 kW. 744 rpm, Eff. 96.0%. IP55.

Rated Power 50Hz
450.0 kW
Degree of Protection
IP55
Weight (IM B3)
3300.0 kg

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 450.0 kW
Rated Power 60Hz 400.0 kW
Rated Speed 744 rpm
Rated Torque 5800.0 Nm
Number of Poles 8
Rated Current 850.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Weight (IM B3) 3300.0 kg
Moment of Inertia 27.5 kgm2

Performance

Efficiency 4/4 Load 96.0 %
Efficiency 3/4 Load 96.3 %
Efficiency 2/4 Load 96.0 %
Power Factor 0.8

Detailed Description

SD Motors Add new generation Basic Line cast iron IE4. Article 1LE5534-4AD7. Rated power 450.0 kW at 50 Hz. Speed 744 rpm. Efficiency 96.0% at rated load. Degree of protection IP55. Insulation class F.
