Home → Catalog → Innomotics SD — Next Generation (1LE5) → Innomotics SD 1LE5504 → Innomotics SD 1LE5504 75.0kW 2P
Innomotics SD 1LE5504 75.0kW 2P — Innomotics Innomotics SD — Next Generation (1LE5)
Part of Siemens Group
CE Certified
ISO 9001 Quality
24h Quote Response

Innomotics SD 1LE5504 75.0kW 2P

SKU: 1LE5504-2CA6
Innomotics SD — Next Generation (1LE5)

Motor Next Gen IE4: 75.0 kW. 2982 rpm, Frame 250M, Eff. 75.0%. IP55.

Rated Power 50Hz
75.0 kW
Degree of Protection
IP55
Frame Size
250M

Innomotics is part of Siemens Group. We respond to quote requests within 4 business hours.

Electrical

Rated Power 50Hz 75.0 kW
Rated Power 60Hz 250.0 kW
Rated Speed 2982 rpm
Rated Torque 240.0 Nm
Number of Poles 2
Rated Current 126.0 A

Environmental

Degree of Protection IP55
Insulation Class F (155)
Cooling Method IC411 / IC418

Mechanical

Frame Size 250M
Weight (IM B3) 463.0 kg
Moment of Inertia 0.811 kgm2

Performance

Efficiency 4/4 Load 75.0 %
Efficiency 3/4 Load 95.6 %
Efficiency 2/4 Load 95.8 %
Power Factor 0.9

Detailed Description

SD Motors new generation Basic Line cast iron IE4 Super Premium. Article 1LE5504-2CA6. Rated power 75.0 kW at 50 Hz. Speed 2982 rpm. Frame size 250M. Efficiency 75.0% at rated load. Degree of protection IP55. Insulation class F.

Related Products from the Innomotics SD 1LE5504

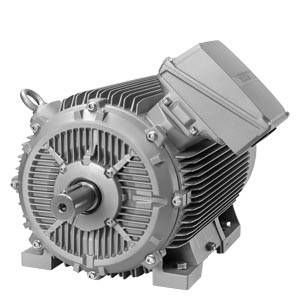

Innomotics SD 1LE5504 8P
